The Two-channel professional USB Audio interface: set, play, game

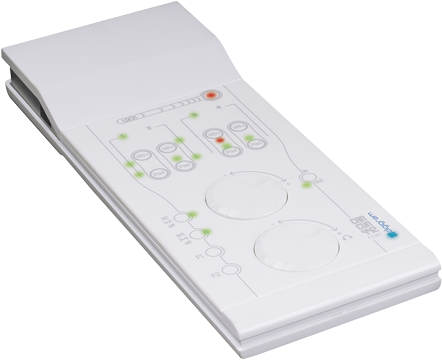

Cancun442-MIC

The Cancun range is production and live sound engineers’ best friend: a quick set up of high-quality Record/Play functions with a PC or Mac through its native USB Audio 2.0 streaming, and technicians on the go can enjoy the full power of Cancun’s AES/EBU and analog interfaces. Cancun will gladly Play/Record up to 4+4 channels simultaneously with Digigram’s signature spotless sound. Whether broadcast or live, Cancun is the ideal companion that won’t ever let you down: sturdy built and super reliable, it is also user-friendly with its LED powered touch panel for easy control settings enabled by main audio measurement applications.

Zero latency, zero compromise, CANCUN is our high-performance sound card that embeds the essence of Digigram’s know-how for pristine live and broadcast applications, including audio measurement.

MENU 1

MENU 2

MENU 3

High audio quality

Line/Mic inputs with high-quality preamps

Low latency

The speed of sound! Zero-latency embedded mixer ( → Round trip latency below 4ms)

Robust and Stable

Our ultra-robust design and high-end connectors fear no situations!

Best-in-class audio performances

(+55 dB gain, -105 dB THD+N, -126 dB EIN)

Key features

Compact form factor in slim, streamlined design.

Ultra-high precision clock

No compromises
→ 2/2 Analog and 1/1 AES-EBU I/Os in a high-density casing

Benefits

Record and edit Broadcast quality audio

Console class Mic

Secure your Live productions

Ultra-robust design and high-end connectors

Carry a single toolbox

Standalone mode provides high-end

Mic preamp and Analog / AES I/Os bridging

Specifications

Supported OS / Environments

Operating system supported Windows 10, 8, Windows 7 (32 and 64 bits), Mac OS X, Linux

Management: depending on the host operating system’s implementation of the USB Audio 2.0 specification. Microsoft Windows management is provided through DirectSound, Core Audio, WASAPI third-party ASIO driver.

Configuration

Bus/Format USB 2.0 / Compliant with the USB 2.0 audio specification

Size 254 mm x 96 mm x 36 mm

Operating: Temp / Humidity 0°C to +50°C / 0 % to 90 % (non condensing)

Connectors

Audio connectors One XLR female for left input channel

Sub-D 25 pts (222-Mic) or 44 pts (442-Mic) for all analog and digital I/Os 6.35 mm jack for stereo headphone output

Neutrik XLR breakout cable included USB connector Standard, includes two A-type on PC side, one mini-B USB on card side

    Audio I/Os

    INPUTS

    Analog inputs (mono) : 2 balanced analog Mic/Line inputs

    Digital inputs (stereo): 1 AES3 stereo input

    Switchable: 48V phantom power 7 mA Max on each input

    Analog input gain:

    – From 0 to 55 dB by 1 dB steps,

    – switchable Pad 30.0 dB

    Input sensitivity: 0 dBfs adjustable from -30 dBu to +25 dBu (Line) and -60 dBu to -5 dBu (Mic)

    Maximum input level/impedance Line: +25 dBu / > 3.5 kOhms; Mic: -5 dBu / > 2 kOhms

    Frequency response (A/D Input)

    – at 48 kHz: 20 Hz–20 kHz +0/-0.5 dB

    – at 96 kHz: 20 Hz–40 kHz +0/-0.6 dB

    – at 192 kHz: 20 Hz–80 kHz +0/-2.0 dB S/N

    Analog input, typical S/N: 108 dB unweighted and 111dBA @48 kHz THD+N

    Analog input, typical < -105 dB unweighted and -107 dBA / 20 Hz-20 kHz, @48 to 192 kHz ref 1 kHz at –3 dBfs

    Mic inputs E.I.N., typical < -128 dB / Zsource = 40 Ohms; Pad Off; gain 55 dB

    _________________________

    OUTPUTS

    Analog outputs (mono) : 2 balanced analog Mic/Line outputs

    Digital outputs (stereo): 1 AES3 stereo outputs

    Maximum analog level/impedance at 48 kHz: +10 dBu / 2×33 Ohms

    Frequency response

    – at 48 kHz: 10 Hz–20 kHz +0/-0.1 dB

    – at 96 kHz: 10 Hz–40 kHz +0/-0.3 dB

    – at 192 kHz: 10 Hz–80 kHz +0/-1.3 dB

    S/N Analog output, typical > 111 dB unweighted @48 kHz

    THD+N Analog output, typical < -98 dB unweighted / 20 Hz-24 kHz @48 kHz to 192 kHz, ref 1 kHz at –3 dBfs

    Headphones output (stereo)

    – Dedicated output stage, > 10 mW from 32 to 600 Ohms 10Hz-20 kHz +-0.1 dB;

    – Dynamic range: 93 dB @32 Ohms, typical

    Audio Specifications

    A/D and D/A converters 24-bit / frequency : 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz

    Audio formats: PCM 8, 16, 20, and 24 bits, full-duplex

    Latency 3.4 mS

    – analog-to-PC or PC-to-Analog (Windows 7 / 64 bits) 3.8 mS

    – analog-to-MAC or MAC-to-Analog (Mac OS X 10.6.8)

    Channel phase diff. (A/D and D/A) ± 0.2° (20 Hz – 20 kHz)

    MIXER AND PROCESSING

    Analog-to-AES/EBU Bridge In Stand-alone mode

    AES/EBU-to-Analog Bridge In Stand-alone mode

    Embedded Mixer Zero-latency headphone Mixer
