Multichannel Sound Card

LoLa280

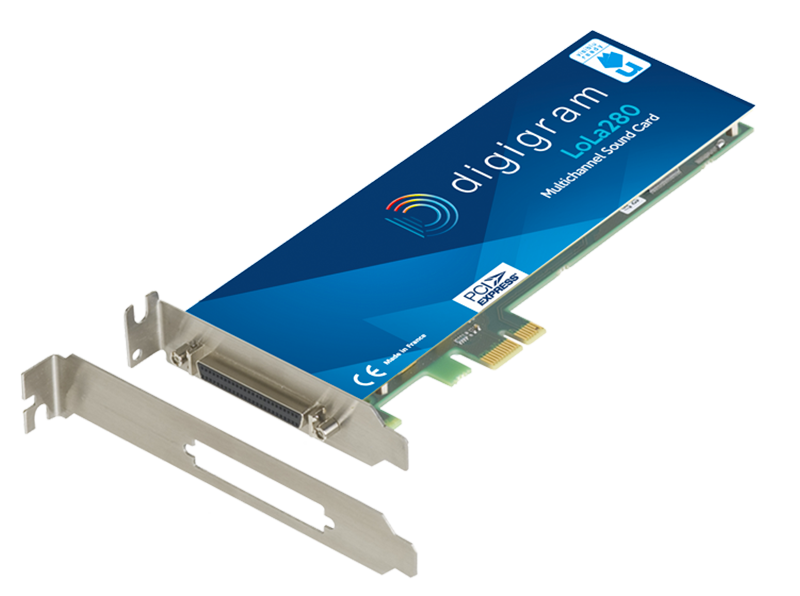

LoLa 280 is the queen of public address. We have designed this low profile PCI Express linear (PCM) multichannel sound card to excel at  professional audio recording. Our queen of PA accommodates both OEM and end user applications for any situation where reliability is paramount, with an extra user-friendly versatile built-in feature. Audio logging and archiving systems for radios or safety organizations work better with LoLa 280.

MENU 1

MENU 2

MENU 3

Reliability

Keep calm and carry on. Our hardware and software are designed for 365/24/7 mission-critical applications.

Made for your multi-channel analog recording

AGC on all inputs, mix before recording, up to 5 synchronized cards in a workstations

One size fits all

LoLa 280 fits every situation and every PC. Low Profile card, delivered with a full-height and a half height bracket to fit any PC / server.

Versatile and hands-on

Delivered with standard and robust audio drivers for Windows and Linux, don’t mind the adaptability: LoLa can be used with a large panel of audio applications.

Key features

Eight balanced analog inputs

Two balanced analog outputs

Headphones outputs



Very low latency design

Benefits

Low OPEX

Low failure rate and high reliability

Can be used in small form factor PCs and 2U servers

(low profile)

Ongoing product support

from Digigram and its Development Partners

Specifications

Supported OS

Windows 10 (32-bit and 64 bits)

Windows Server 2012 (32-bit and 64 bits)

Linux

Drivers for Windows : WDM KS, WASAPI, DirectSound, ASIO

Drivers for Linux: Alsa

Configuration

Bus/Format: USB 1.1, compatible 2.0

Size: 144 mm X 87 mm X 34 mm, Integrated

Power consumption: 500 mA max

Operating: temp / humidity (non-condensing): 0°C / +50°C • 5% / 90%

Storage: temp / humidity (non-condensing): -5°C / +70°C • 0% / 95%

Connectors

I/O connector : 50-pin SCSI

    Audio I/Os

    INPUTS

    Analog line inputs (mono): 8 balanced

    Maximum input level/impedance: +24 dBu / > 10 kOhms

    Adjustable input gain (manager):

    • analog: from –90 dB to +18 dB (max sensitivity: 0dbfs for +6dBu input signal)
    • digital: from +18 dB to +36 dB

    Other inputs: 1 standard Word Clock input (up to 192 kHz)

    OUTPUTS

    Analog line outputs (mono): 2 balanced

    Maximum output level / impedance: +24 dBu / >100 ohms

    Adjustable output gain (manager) analog:

    from –48 dB to 0 dB. digital: from -110 dB to +12 dB

    Other outputs:

    • 1 standard Word Clock output (up to 192 kHz).
    • Stereo headphones (20 mW in 600 ohms) on mini jack (female TRS 3,5 mm)
    Connectivity
    • 8 x female XLRs for analog inputs
    • 2 x male XLR’s for analog outputs
    • 1 x 3.5mm female TRS for headphones
    • 2 x BNC for Wordclock input and output
    Audio Specifications

    Frequency response (record + play)

    at 48 kHz: 20 76Hz -20 kHz: +0.1 /-0,3 dB
    at 96 kHz: 20 Hz -40 kHz: +0.1 /-0,6 dB
    at 192 kHz: 20 Hz -80 kHz: +0.1 /-5 dB

    Channel phase difference: 20/20kHz

    <0.2°/2°

    Dynamic range (A-weighted)

    Analog In: >100 dB
    Analog Out: > 97 dB

    THD + noise 1 kHz at –2 dBfs

    Analog In: <-97 dB
    Analog Out: <-87 dB

    Crosstalk (Analog in or out)

     1 kHz at 24 dBu: <-94 dB
    15 kHz at 24 dBu: <-70 dB
