the ultimate sound card to bridge professional audio applications to DANTE networks

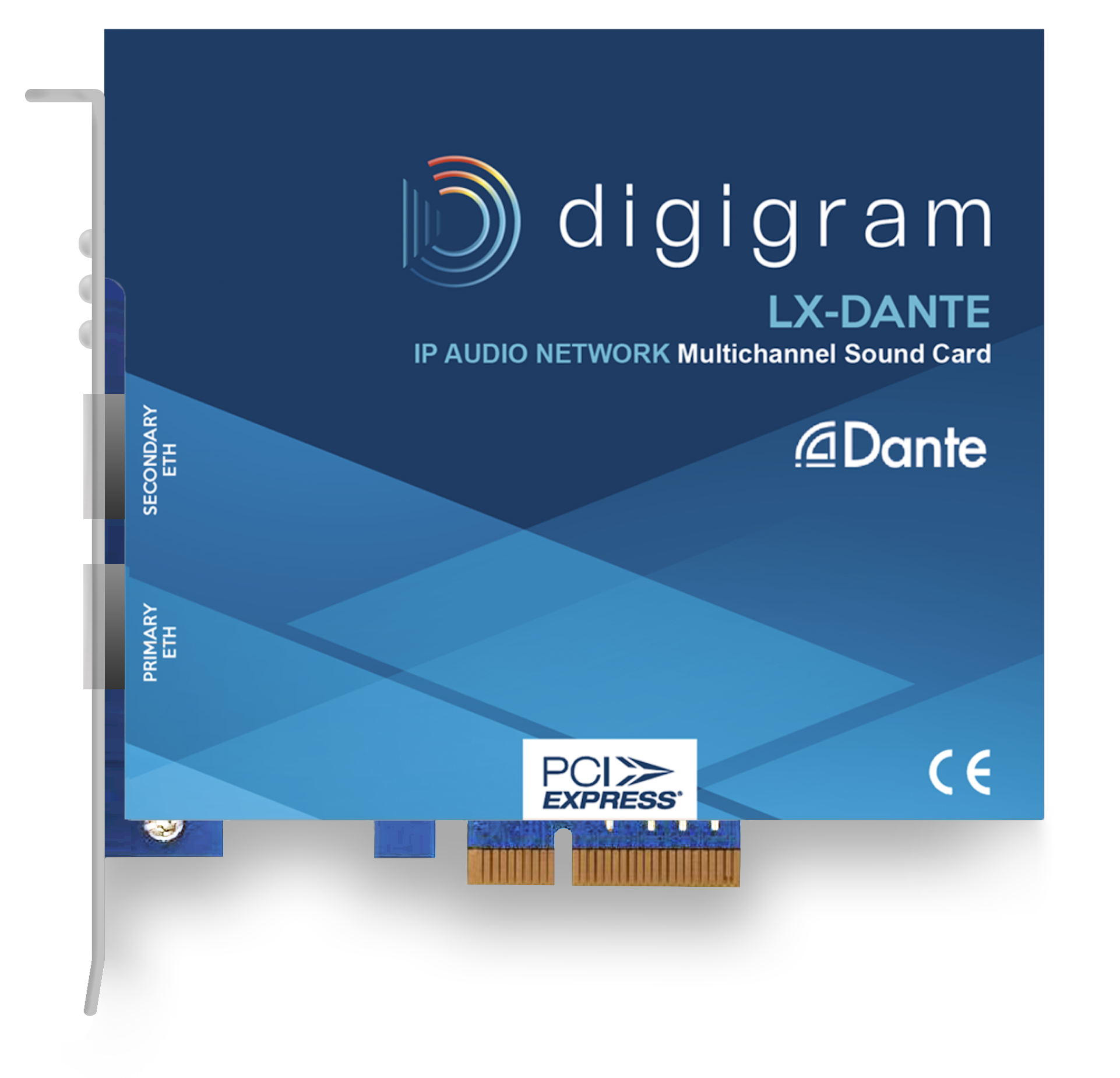

LX-DANTE

There is no better way to connect to DANTE networks. Designed for powerful systems, LX-DANTE shows its potential when seamlessly handling up to 128 x 128 redundant channels. Latency is now history and reliability is natural for LX-DANTE with its professional DAWs used for high quality recordings, processing, and multi-channel playout over Dante networks. There you go.

MENU 1

MENU 2

MENU 3

Reliable

Primary and Secondary Ethernet ports provide seamless network redundancy

Multi-platform

Windows or LINUX, choose a side – LX-DANTE will take care of the rest, hiccup free.

Extra Low Latency

150µs network latency. Yes, we made it.

Key features

128 channels : numbers speak for themselves!



Dante plug and play media networking

Seamless Dante network redundancy via the two Gbit network interfaces

Interoperable with any other Dante-powered and AES67-compliant devices

Benefits

Guarantees failsafe support

of 128 x 128 audio over IP channels on a PC

Offers very low latency

Ensures interoperability

with all Dante capable devices

Allows exchanging audio channels

with non Dante devices through the AES67 compliance

Specifications

Supported OS

From Windows 7, and from Windows Server 2008 R2

Linux as of kernel 3.10 (see LX-Dante support page)

Compatible Drivers: ASIO, Alsa

Configuration

Bus/Format: USB 1.1, compatible 2.0

Size: 144 mm X 87 mm X 34 mm, Integrated

Power consumption: 500 mA max

Operating: temp / humidity (non-condensing): 0°C / +50°C • 5% / 90%

Storage: temp / humidity (non-condensing): -5°C / +70°C • 0% / 95%

Connectors

Network interfaces: Two Gigabit Ethernet RJ45 connectors

    IP Audio

    INPUTS

    Digital inputs (stereo): 8 AES3, 110 ohms, 32 kHz to 192 kHz.

    Hardware sample rate converters (LoLa881-SRC) :  conversion ratio 16:1 to 1:16, from 20 kHz to 192 kHz, Dynamic: 144dB, THD+N: -140dB

    Other inputs :

    • AES11 Sync (from 20KHz to 192 kHz)
    • Word clock (up to 192 kHz),
    • Video sync (PAL, NTSC, 32000 Hz – 192000 Hz)

    OUTPUTS

    Digital outputs (stereo) : 8 AES3, 110 ohms, 32KHz to 192 kHz

    Other outputs : Word Clock (up to 192 kHz)

    AUDIO SPECIFICATIONS

    Audio Channels: 128 / 128 I/O channels @ up to 96kHz. 64 / 64 I/O channels @ 192kHz

    Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192kHz

    Sample bit-depth: 24 bit PCM Audio

    Latency: Round trip latency as low as 2.99ms

    Compatibility

    Thunderbolt chassis: OWC (Other World Computing) Mercury Helios `

    Sonnet Echo Express SE II

    Magma ExpressBox 1T 1 Slot
